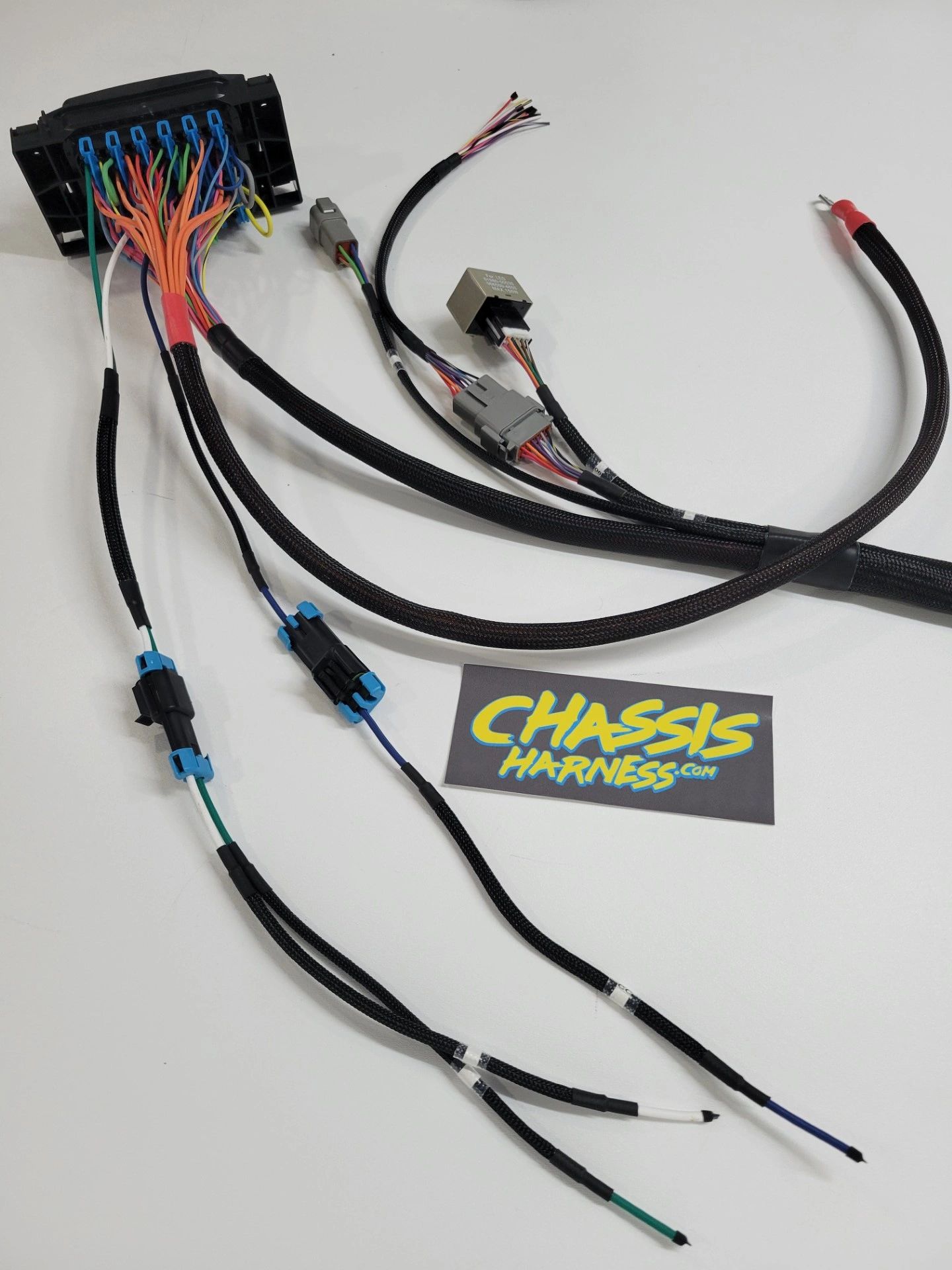

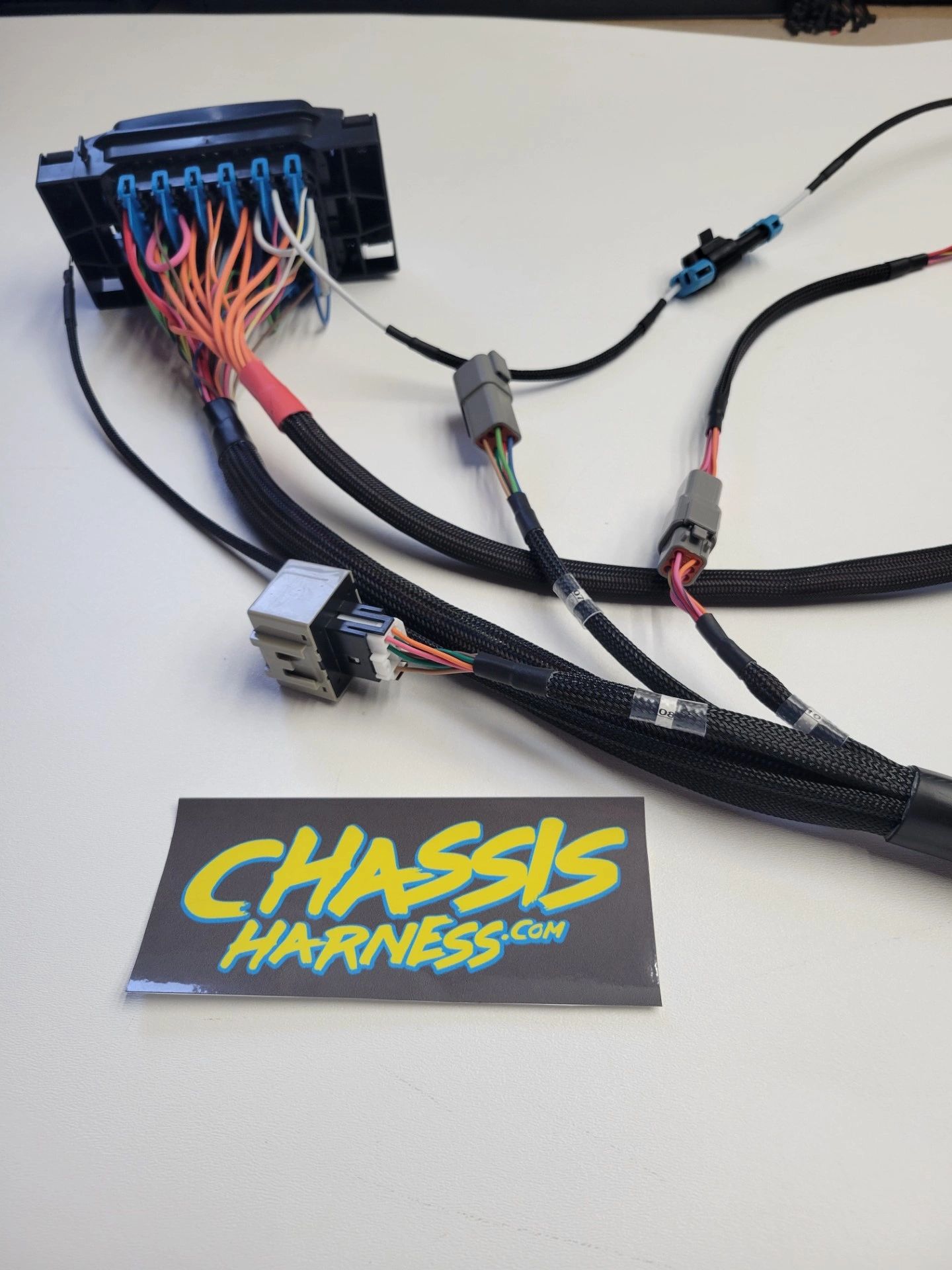

E36 Chassis Harness

The E36 Chassis Harness is a essential component for any auto enthusiast looking to upgrade their vehicle’s electrical system. This high-quality harness is specifically designed to seamlessly integrate with the E36 chassis, ensuring optimal performance and reliability. With a multitude of wires expertly connected to an electrical device, this harness provides a clean and organized solution for wiring needs. Whether you’re looking to enhance your vehicle’s performance or simply replace a worn-out body harness, the E36 Chassis Harness is the perfect choice. Trust in its durability and precision engineering to keep your vehicle running smoothly for years to come.

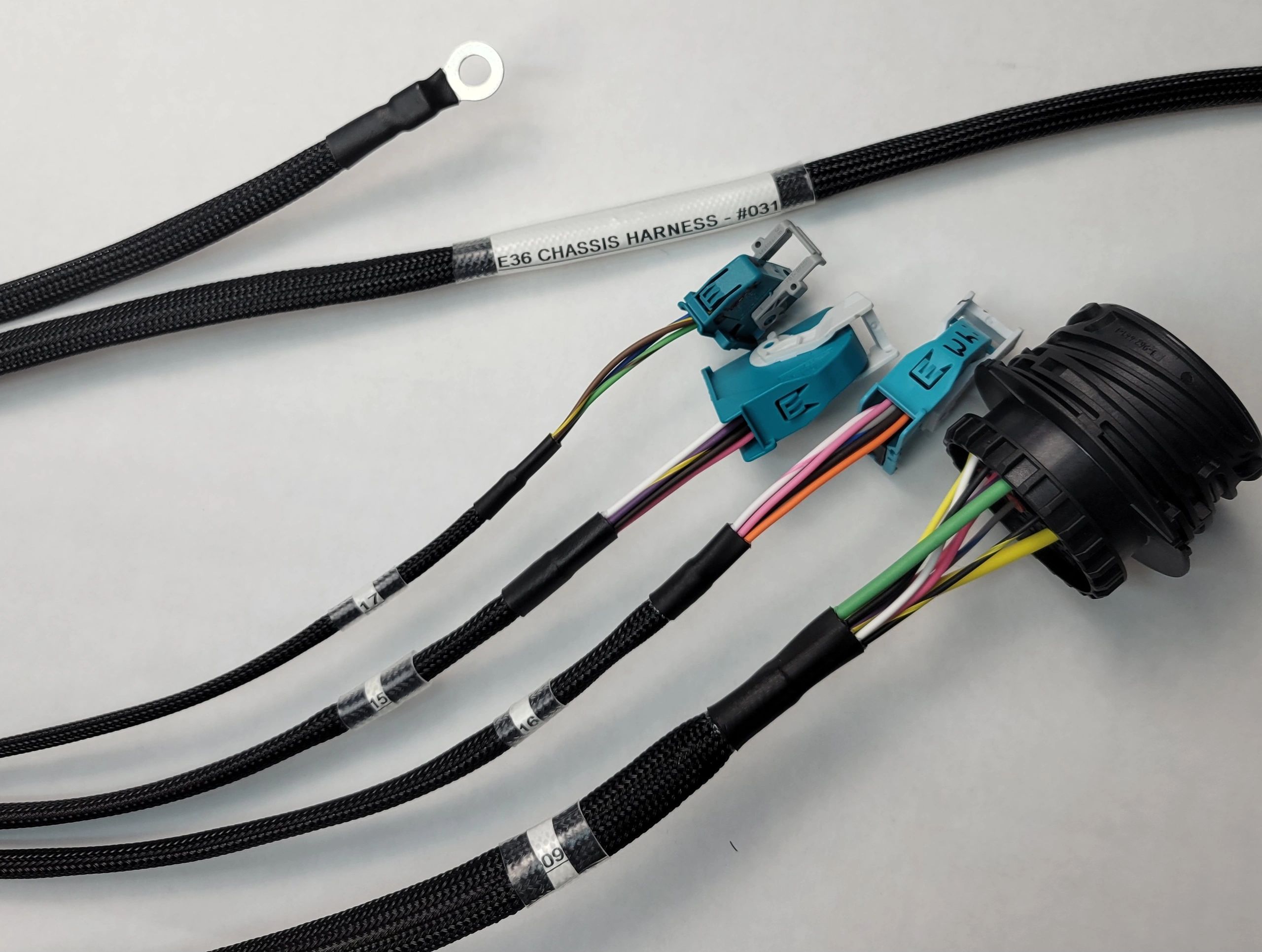

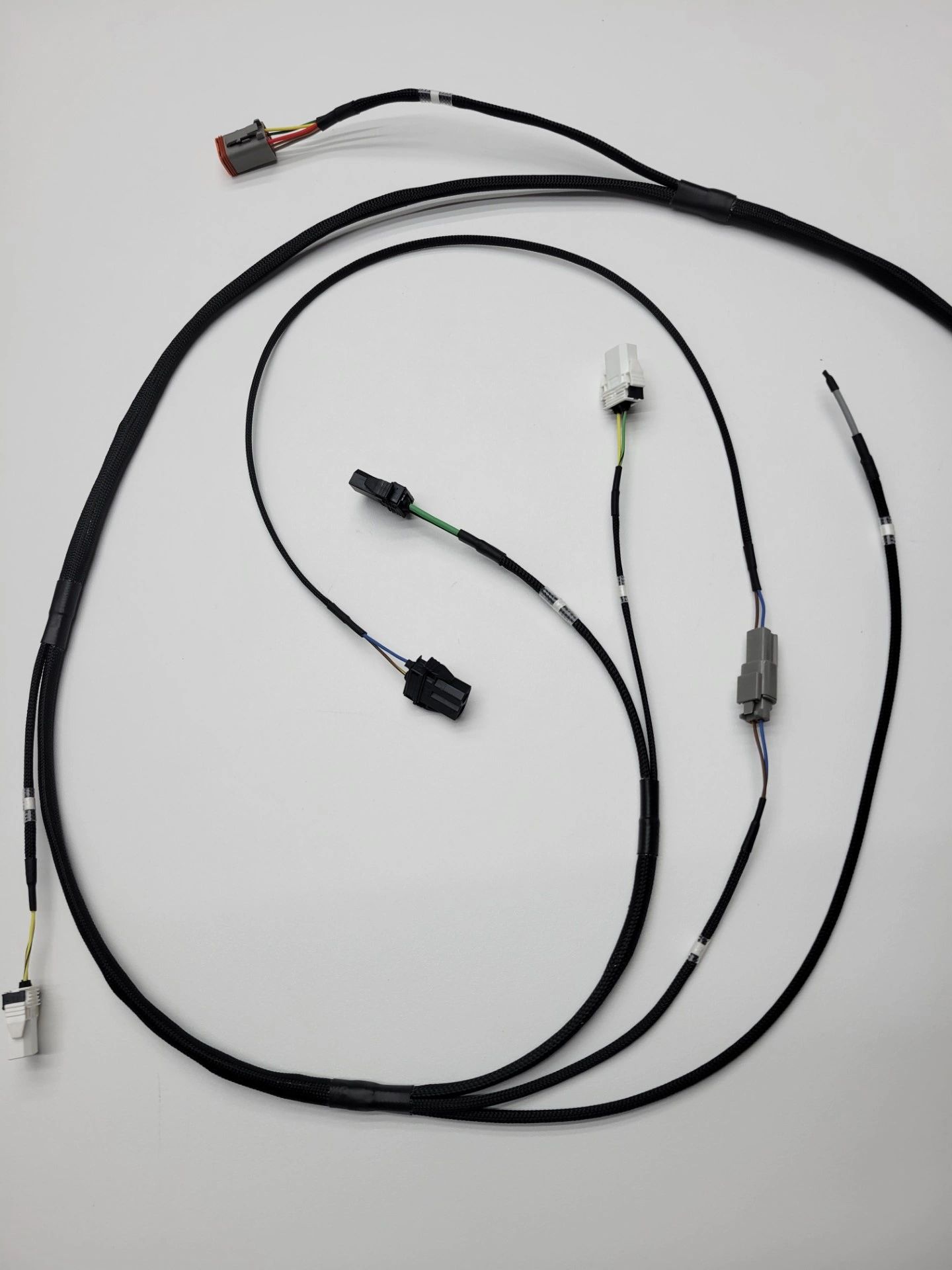

Brand new genuine BMW connectors, Terminals, and TXL wire. Built in three easy to install sections. Front, the main, and the rear. This is not a full replacement body harness. We offer a essential function Chassis Harness.

Below is a list of functionality.

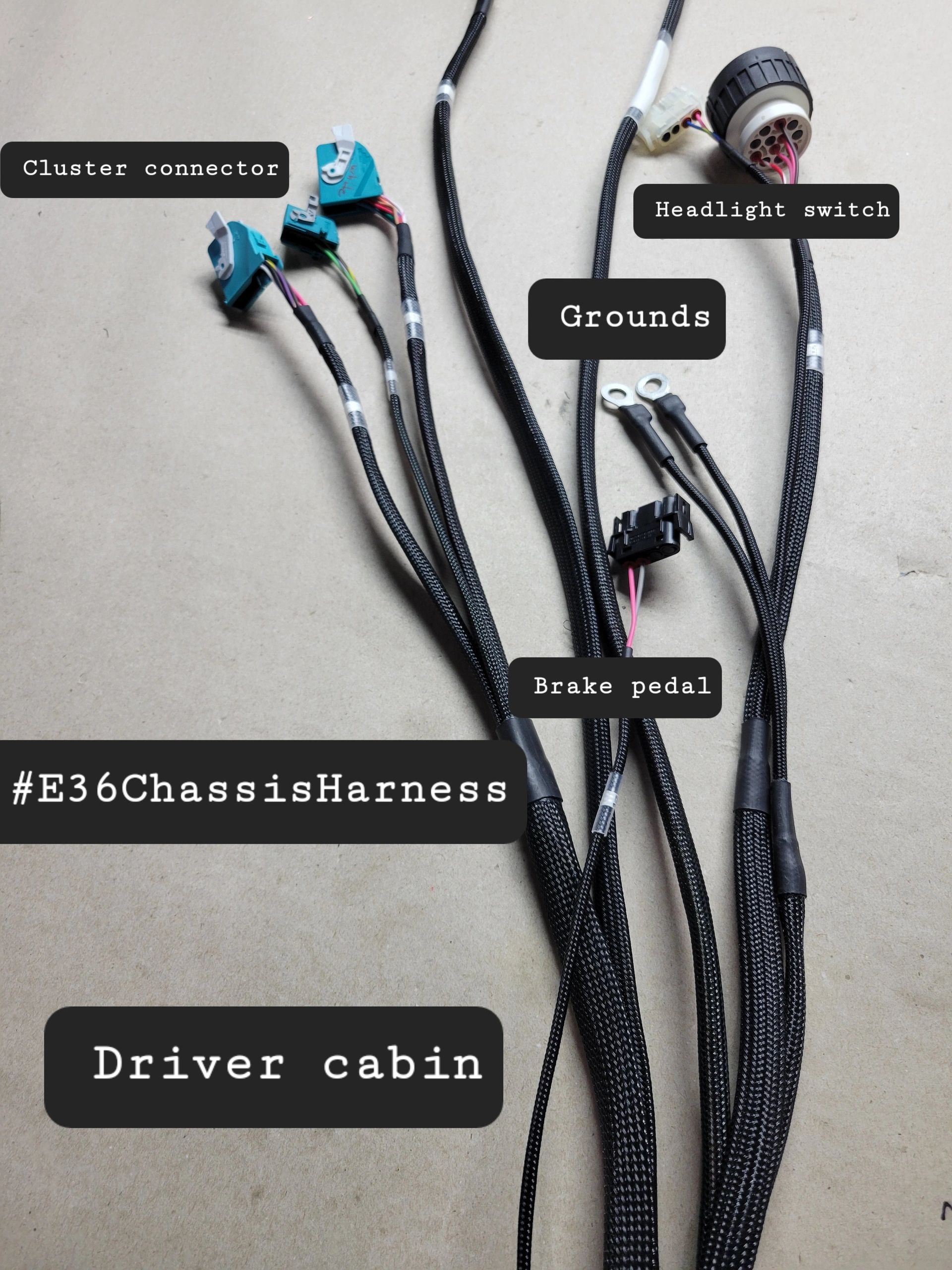

– Blinkers utilize the BMW OEM switch on the steering column.
– Left, right, and 3rd brake light. Plugs into your E36 OEM brake pedal
– Reverse lights, left as a flying lead. Send 13.8v (+) power to this wire. To activate the reverse lights
– Headlight switch which activates the vehicles running lights, and headlights.
– High beams work off the factory blinker switch
– Speed signal from the differential, to the BMW OEM 6 cylinder cluster
– OEM Fuel pump housing connectors
– Fuel level sender, works the OEM BMW cluster gas gauge.
– Functional cluster- fuel level, speed, tach, OEM BMW I6 coolant temperature sensor specifically, CEL, battery light, and oil light functions.
– Fully functional tumbler, using your OEM key.

When you remove your old factory harness, do not throw it away, JUST YET!!

This is a basic function Chassis Harness. This product is NOT a full OEM replacement. We power up the important functions, listed below. The below list can be all plug and play!
– Corner lights
– Blinker lights
– Head lights
– High beams
– Cluster
– X20 – OBD1 & OBD2
– Blinker / headlight stalk
– Tumbler
– Brake pedal
– Fuel pump connector
– Fuel level – passenger side
– Fuel level – driver side
– Speed sensor – off disconnect
– License plate lights
– 3rd brake light
– Tail lights
-Reverse lights

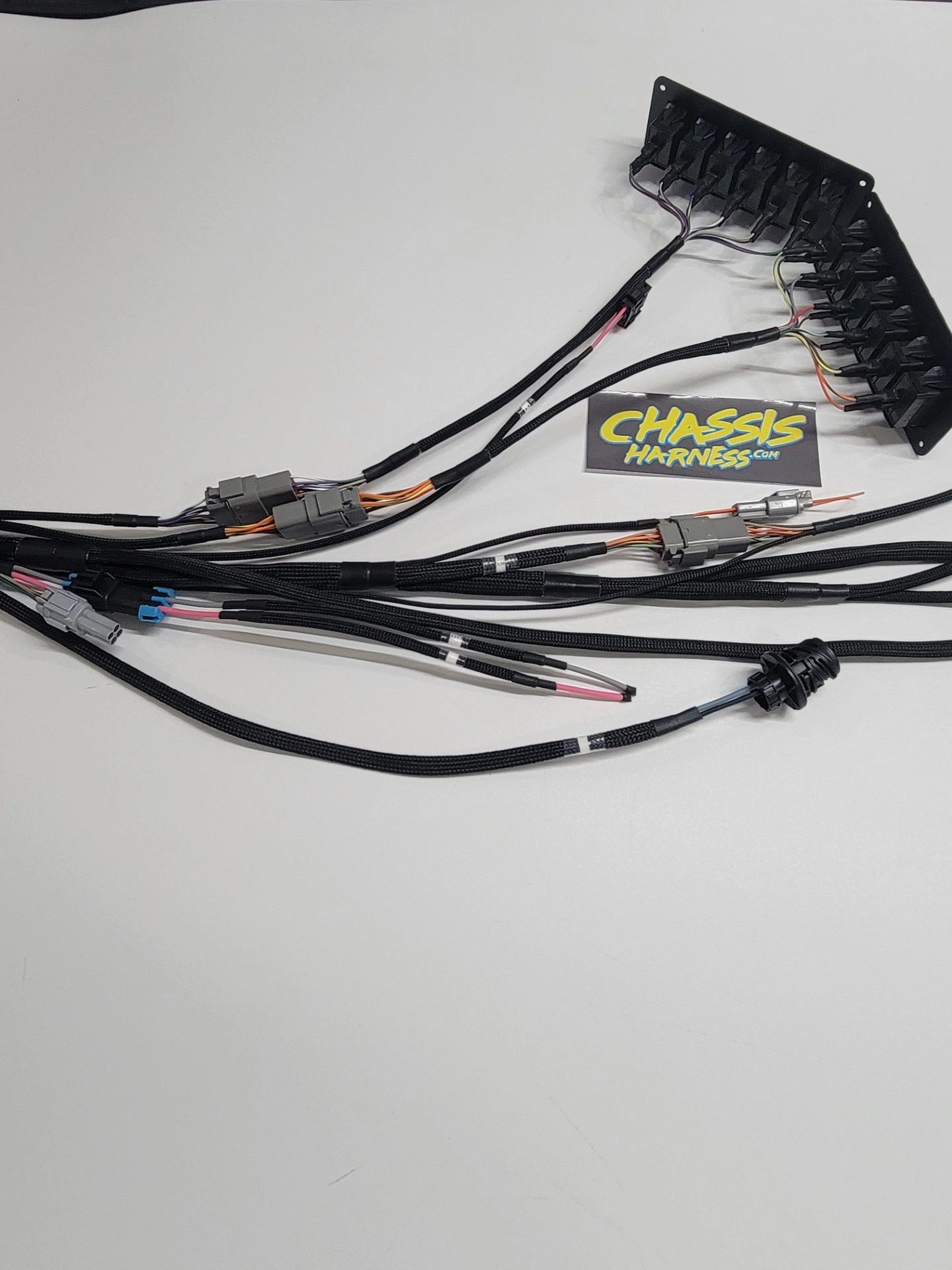

ALL PLUG AND PLAY!!!!! With additional inputs, and outputs located in the passenger side kick area for – battery constant, ignition on, running lights, and reverse. With additional options available.

For a additional fee, we can can also wire
– 2 or 4 electric windows

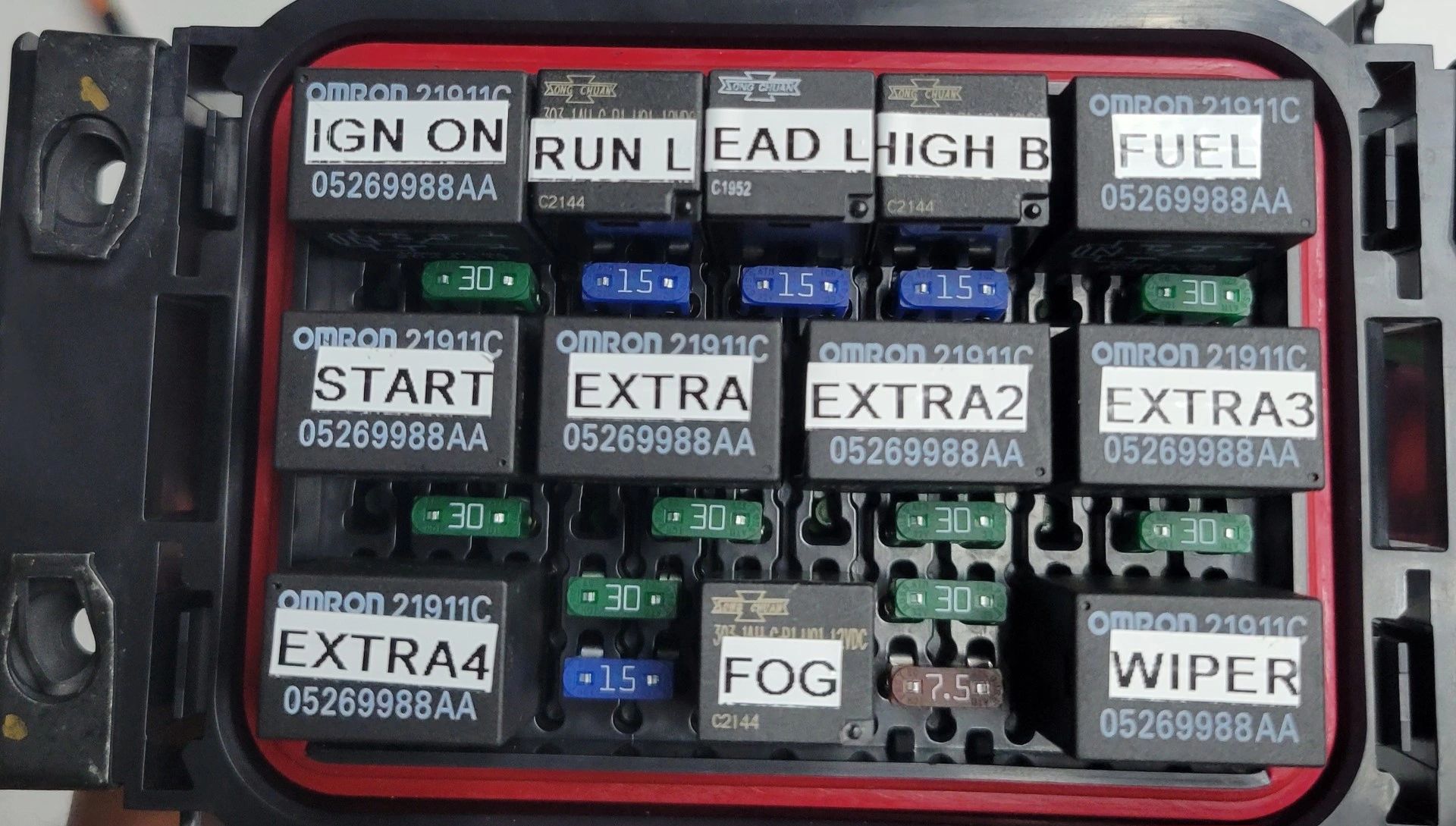

– An extra relay. Add a relay. Is an extra rocker switch, or ignition on powering a 12g 30 amp circuit flying lead. Only supplying power. You supply the ground. (NOT TO BE USED FOR FANS)
– Trigger switch . A trigger switch is a 20g switch ground, or power signal. (No relay) Left as a flying lead, in the inputs, and outputs disconnect.

X20 connector VS flying leads option. The X20 connector option is available for OBD1, and OBD2 vehicles. Flying leads included a 12g flying lead for the starter (You pin your specific start terminal on) 20g battery power, 20g key on signal (not to be used to provide power to the engine harness itself, only to indicate that the vehicle is now key on) 20g fuel signal, picking up the ecu out – either switch ground or switch power.

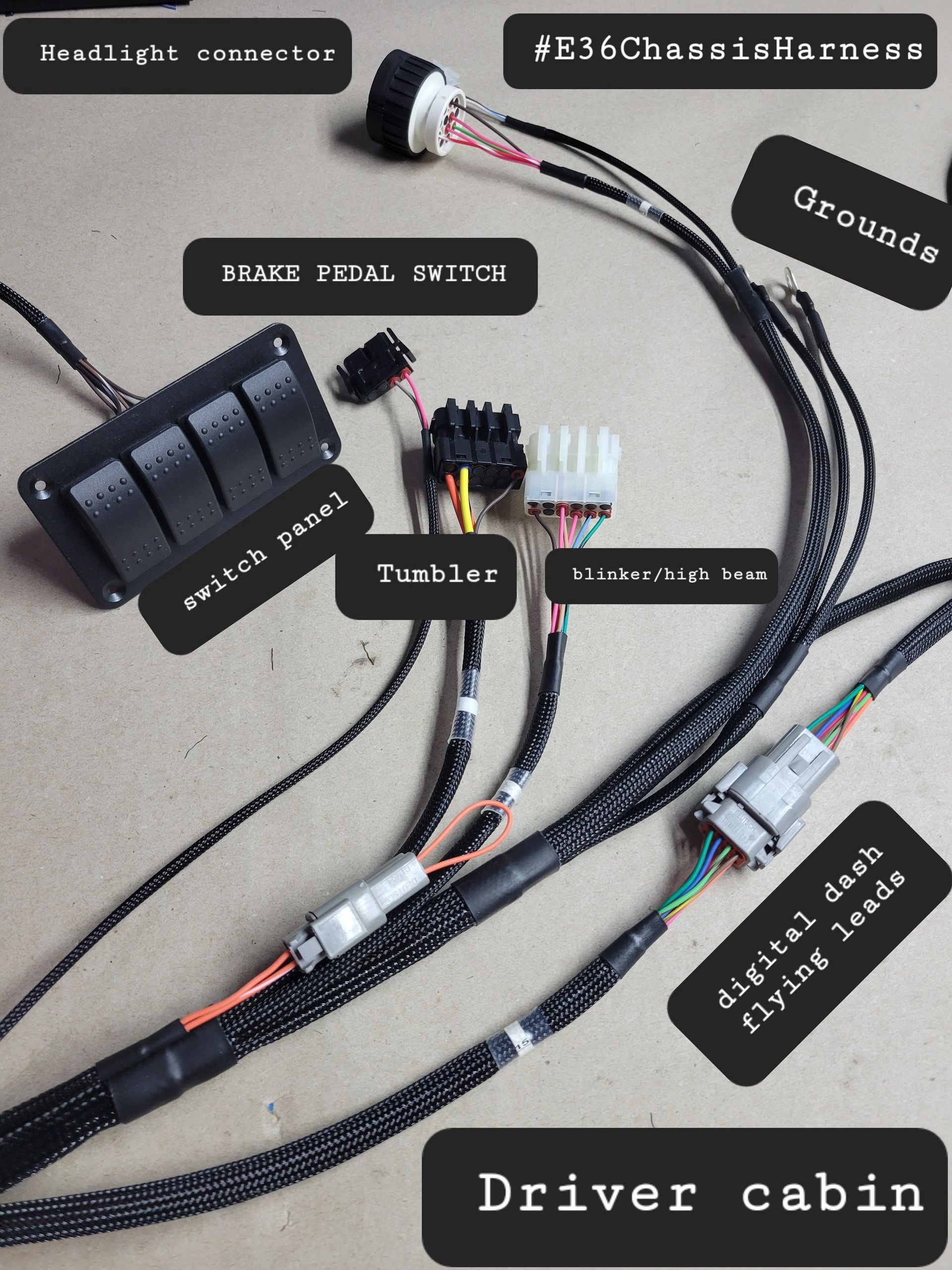

Digital dash includes to following 20g flying leads – battery power, key on, running lights on, Left blinker, right blinker, fuel level, speed, shared sensor ground for fuel, & speed, Headlights on, high beams on, ground. If you should require anything else, Indicate that to us on your questionnaire.

We do not wire the engine harnesses, A.C, wiper, fans, radio, speakers, sunroof, heater, defrost, cruise control, or power locks. This is a essential function Chassis Harness.

We can how ever leave a 12g flying lead(s). Receiving power from either ignition on, or a switch (depending on your build requirements) To activate extra circuits. For example, you could use it to power up a radio, wiper or CB, radar, underglow, ect. We only supply the power. (NOT FOR FANS. Will void warranty)

Out of Country sales. send us a email.

For Tefzel wire with Reychem loom options. Contact us for specific pricing.

The turn around time is about 3 – 6 weeks. From the time your payment clears, until we begin building. Subject to change with out notice.

Ignore – BMW E36 3 series E chassis 318 325 328 M3 SCCA drift autocross drift racing drag drag racing

A refund can be issued, up until we begin building your custom E36 Chassis Harness. A E36 Chassis Harness refund, is subject to a 15% processing fee. Of the retail price.

Email us as Sales@chassisharness.com if you have any questions. Or if you would like us to send you our E36 Chassis Harness Questionnaire.
