RX7 Chassis Harness

RX7 Chassis Harness available for the Mazda RX7 Fc 1986-1992

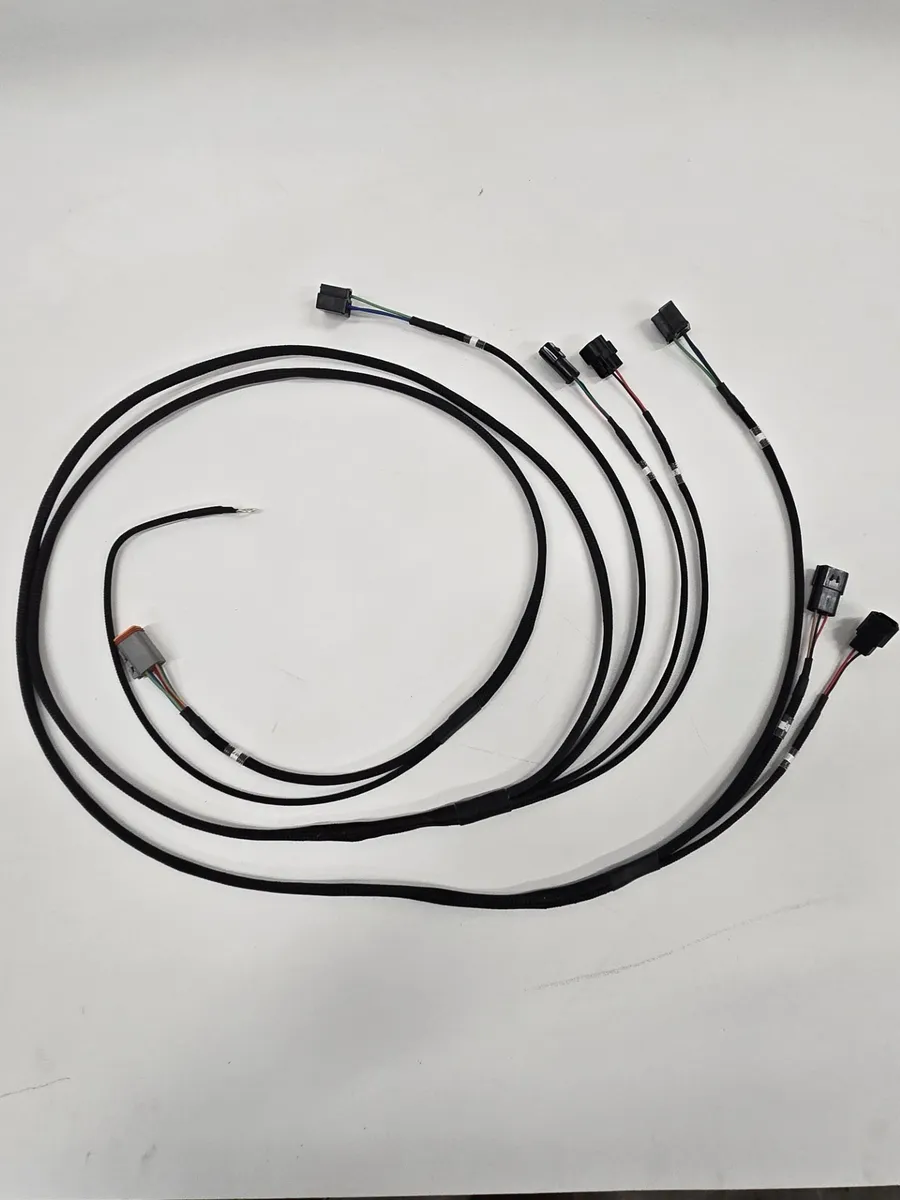

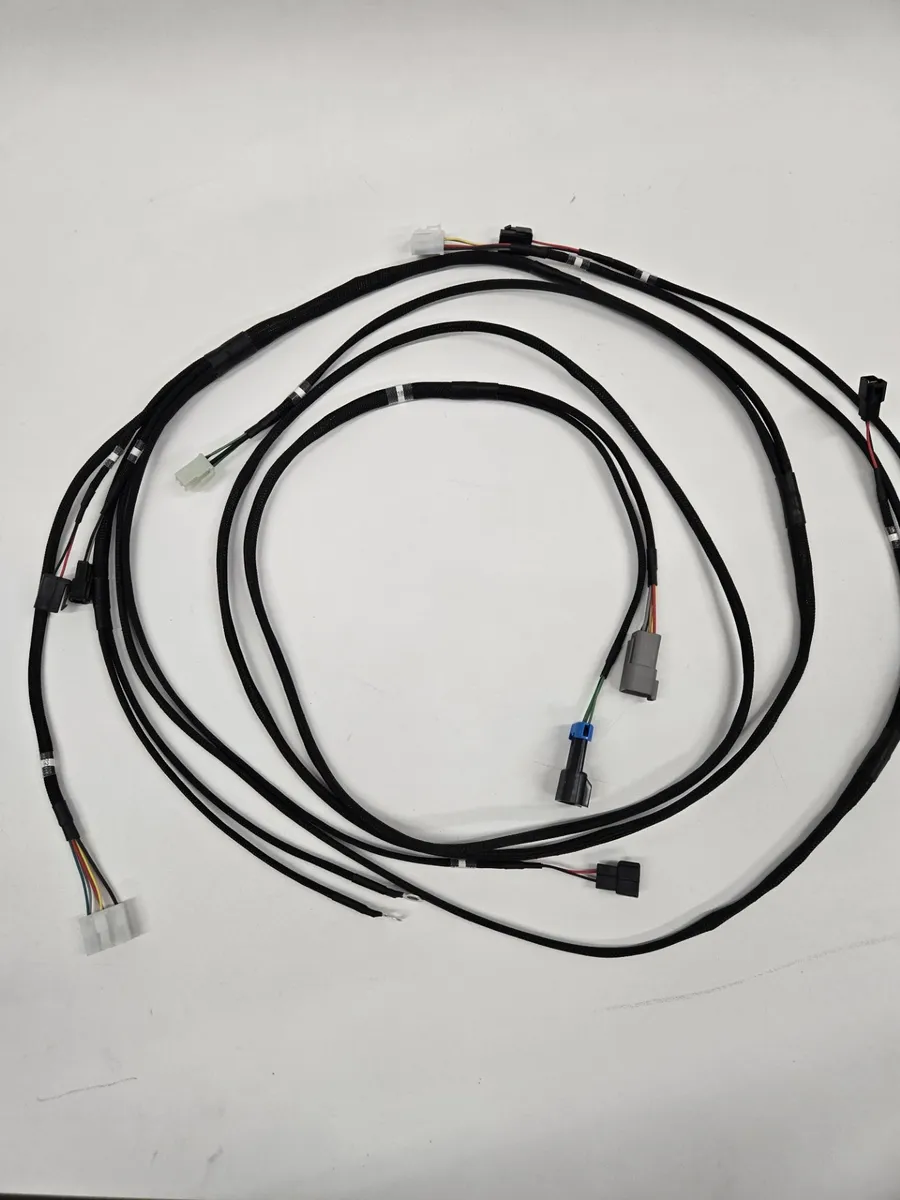

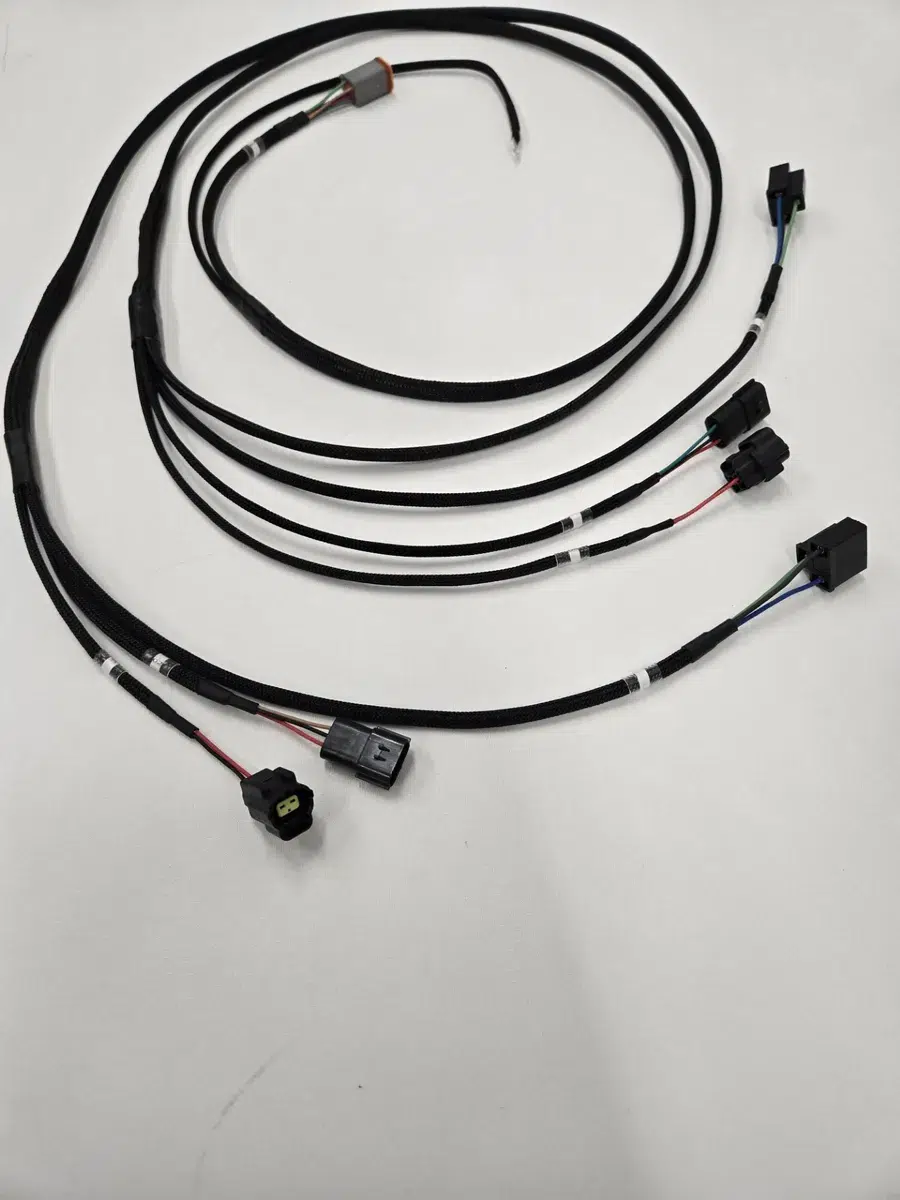

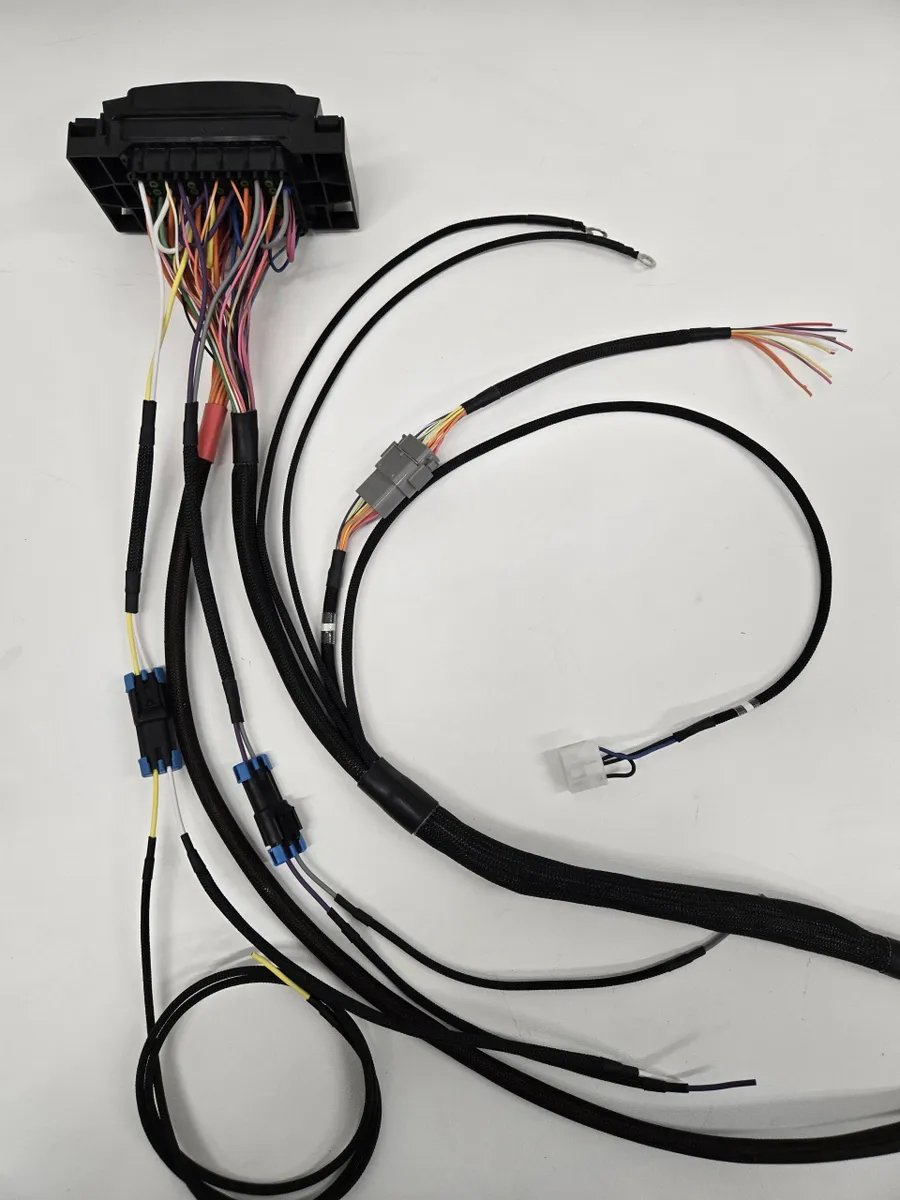

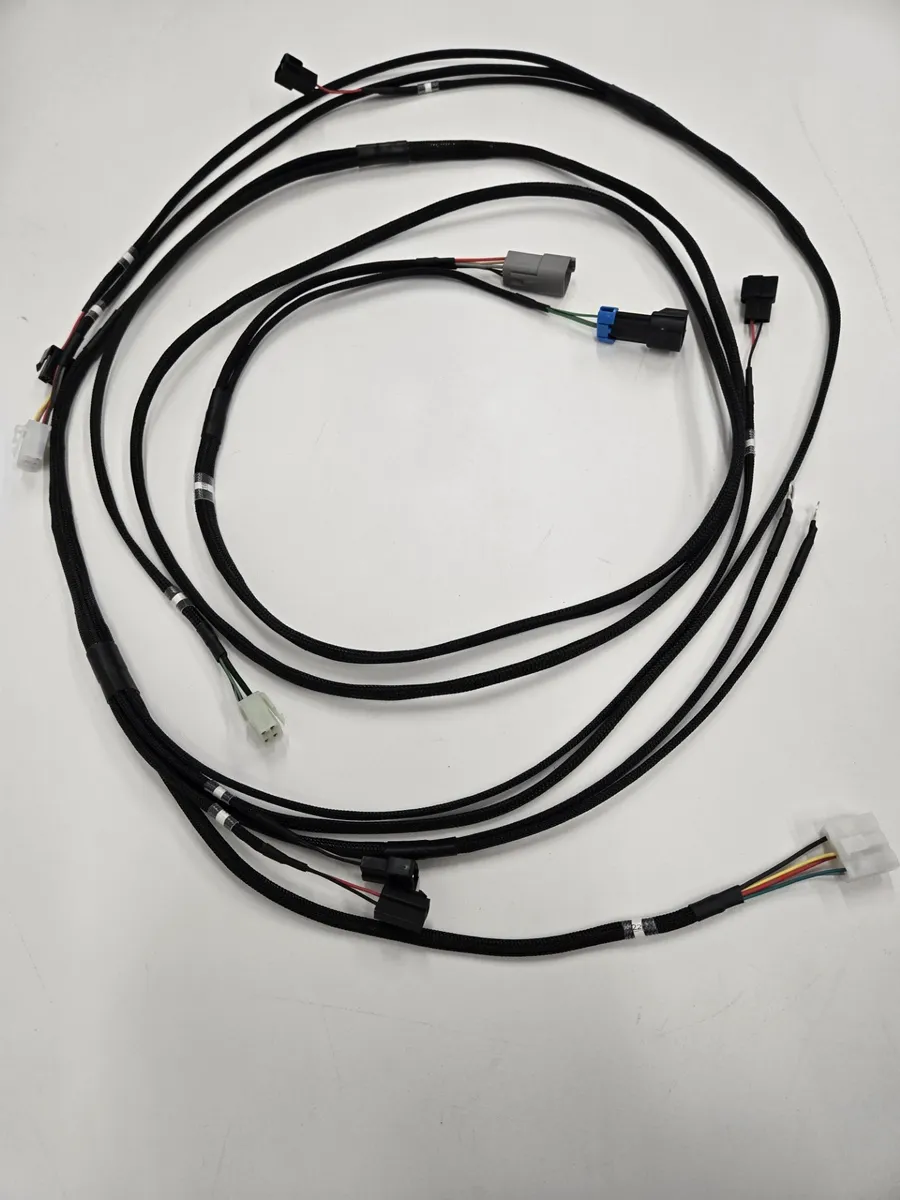

Brand new connectors, Terminals, and TXL wire. Built in three easy to install sections. Front, the cabin, and the rear. This is not a full replacement body harness. We offer an essential function Chassis Harness.

Below is a list of functionalities.
– Blinkers utilize the OEM Fc switch on the steering column.
– Left, right, and 3rd brake light. Plugs into your OEM brake pedal
– Reverse lights, left as a flying lead. Send 13.8v (+) power to this wire. To activate the reverse lights
– Headlight switch which activates the vehicles running lights, and headlights.
– High beams work off the factory switch
– OEM Fuel pump housing connectors
– Functional cluster option
– Fully functional ignition switch, using your OEM key.

When you remove your old factory harness, do not throw it away, JUST YET!!

This is a basic function Chassis Harness. This product is NOT a full OEM replacement. We power up the important functions, listed below.
– Front bumper light
– Front fender light
– Blinker
– Head lights
– High beams
– Cluster
– Blinker / headlight stalk
– Ignition switch
– Brake pedal
– Fuel pump connector
– License plate lights
– 3rd brake light
– Tail lights
-Reverse lights

ALL PLUG AND PLAY!!!!! With additional inputs, and outputs located in the passenger side kick area for – battery constant, ignition on, running lights, and reverse. With additional options available.

For a additional fee, we can also wire
– 2 or 4 electric windows. This is a separate product, that can be sold with a Chassis Harness. That is not wired directly into the Chassis Harness.

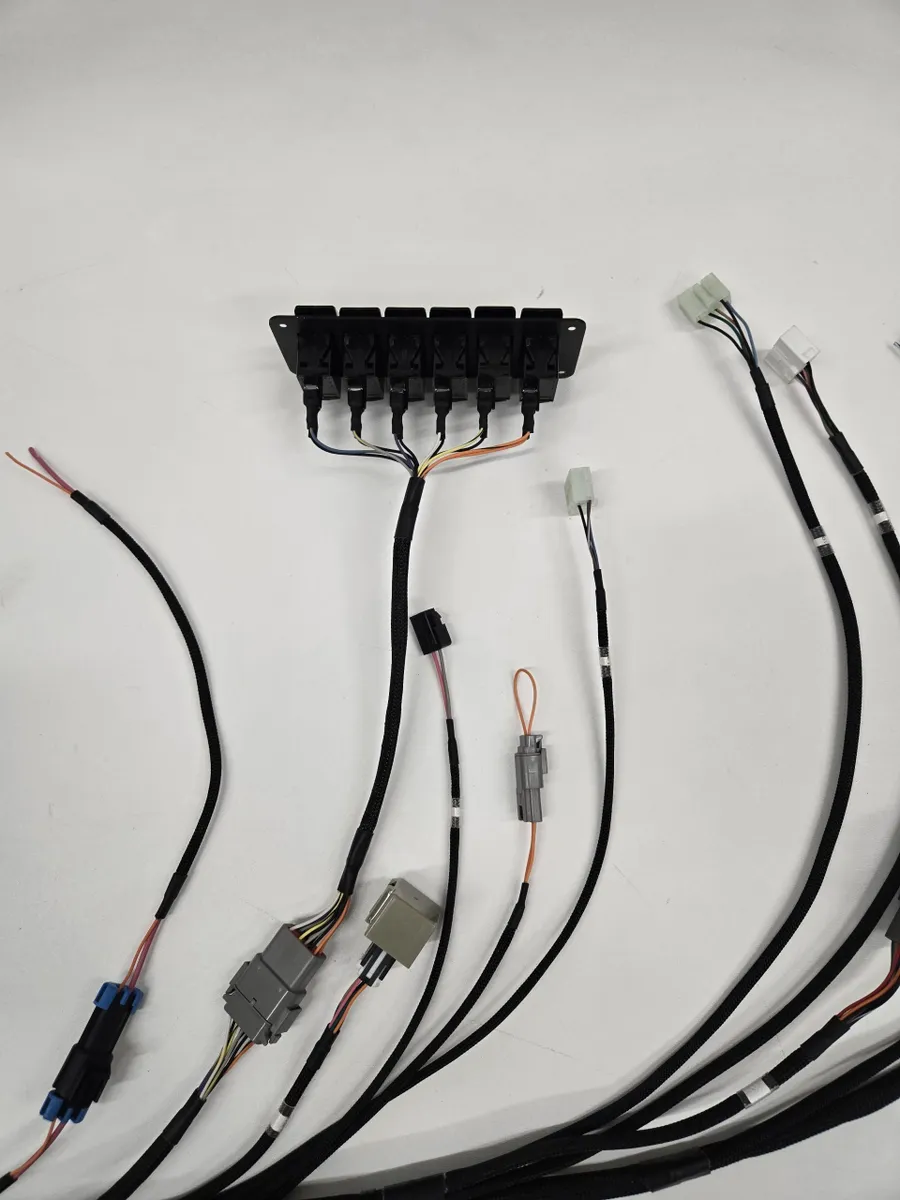

– An extra relay. “Add a relay”. Is an extra rocker switch, or ignition on powering a 12g 25 amp circuit flying lead. Only supplying power. You supply the ground. (NOT TO BE USED FOR FANS) If you would like a aux or trigger switch to activate your fans recommend relay. Let us know.
– Trigger switch. A trigger switch is a 20g switch ground, or power signal. (No relay) Left as a flying lead, in the inputs, and outputs disconnect.

We do not wire the engine harnesses, A.C, fans, speakers, sunroof, heater, defrost, cruise control, or power locks. This is an essential function Chassis Harness.

We can how ever leave a 12g flying lead(s). Receiving power from either ignition on, or a switch (depending on your build requirements) To activate extra circuits. For example, you could use it to power up a radio, wiper or CB, radar, under glow, ect. We only supply the power. (NOT FOR FANS. Will void warranty)

Out of Country sales. send us a email.

For Tefzel wire with Reychem loom options. Contact us for specific pricing.

The turnaround time is about 5 – 8 weeks. From the time your payment clears, until we begin building. Subject to change with out notice.

A refund can be issued, up until we begin building your custom RX 7 Fc Chassis Harness. A RX 7 Fc Chassis Harness refund, is subject to a 15% processing fee. Of the retail price.

Email us as Sales@chassisharness.com if you have any questions. Or if you would like us to send you our RX – 7 Fc Chassis Harness Questionnaire.
