E30 Chassis Harness

E30 Chassis Harness!! Upgrade your BMW E30 with our high-quality Chassis Harness. Designed for optimal performance and durability, this harness will ensure smooth operation on the track, or street. Offer all style of front end options – plug and play.

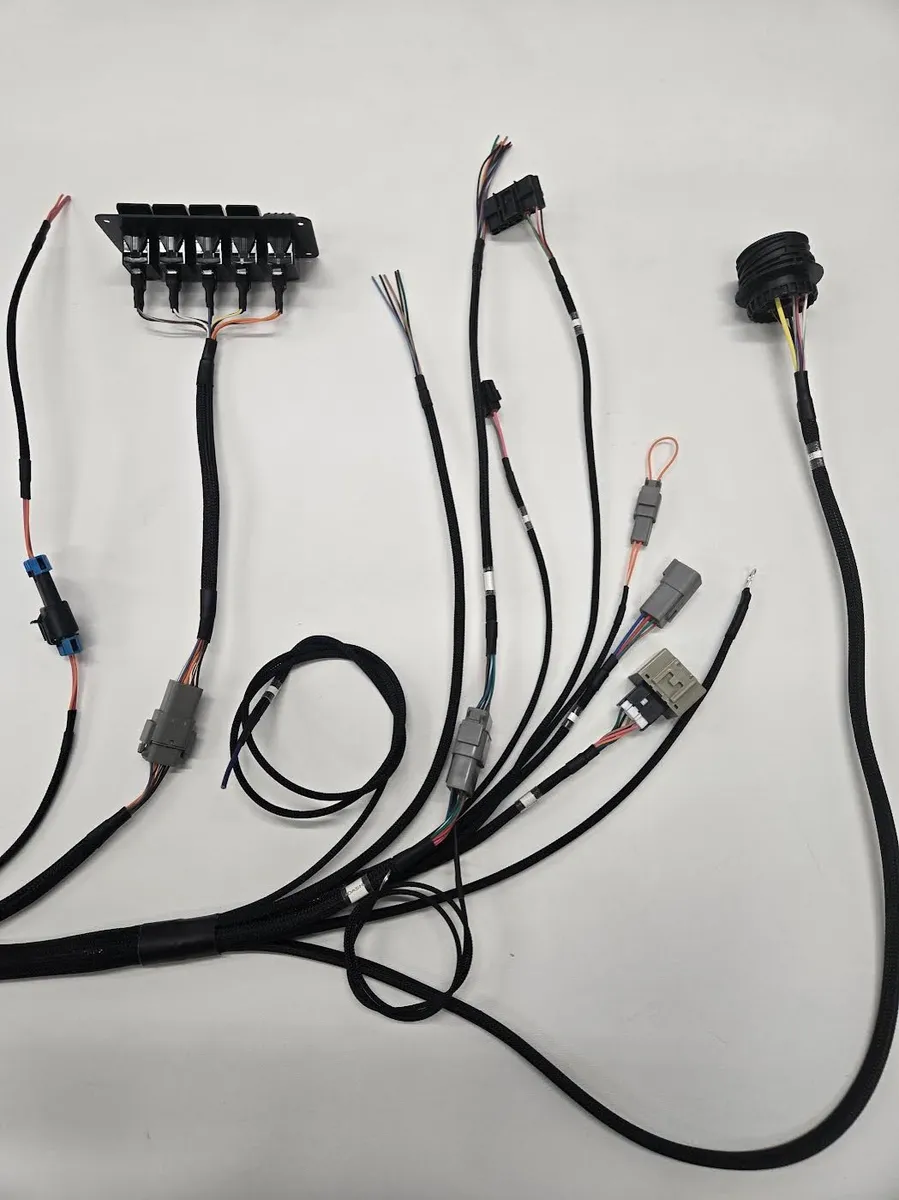

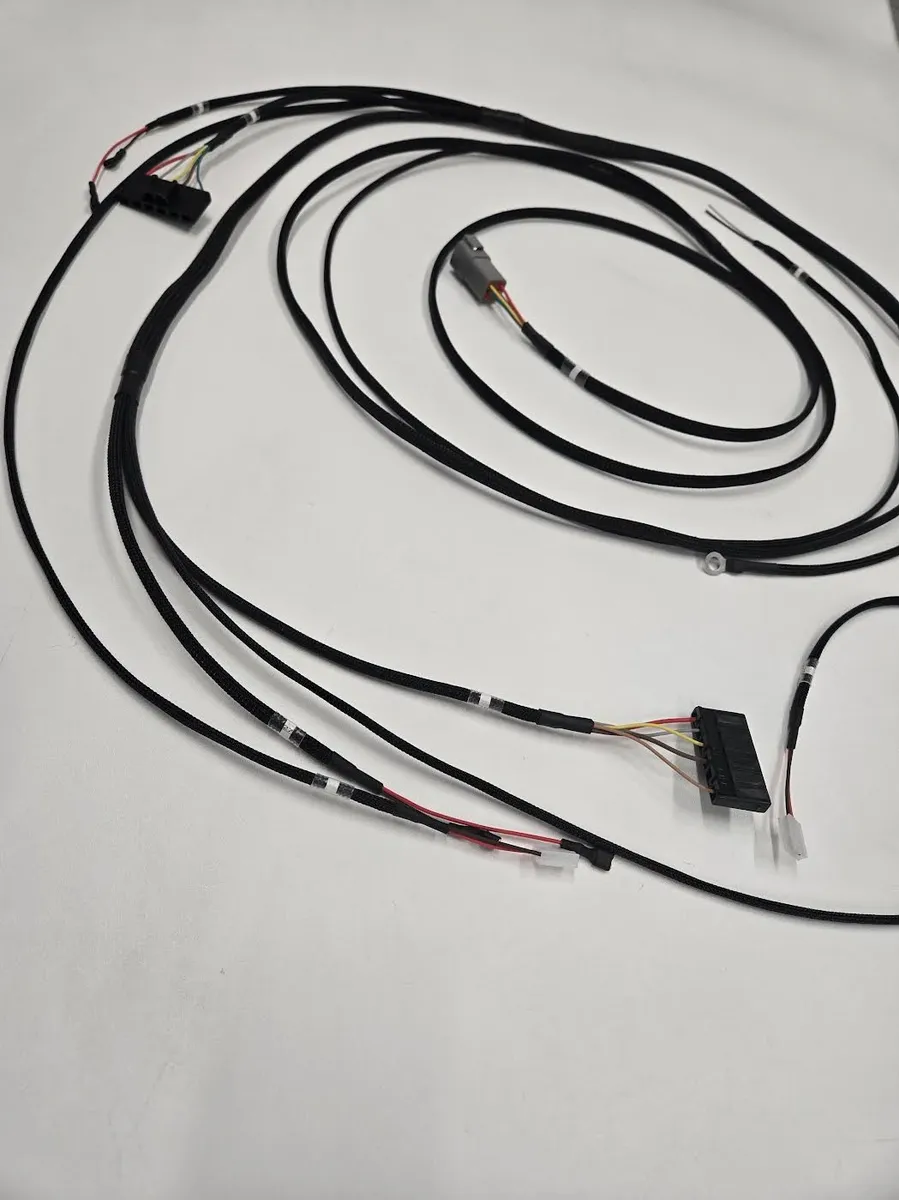

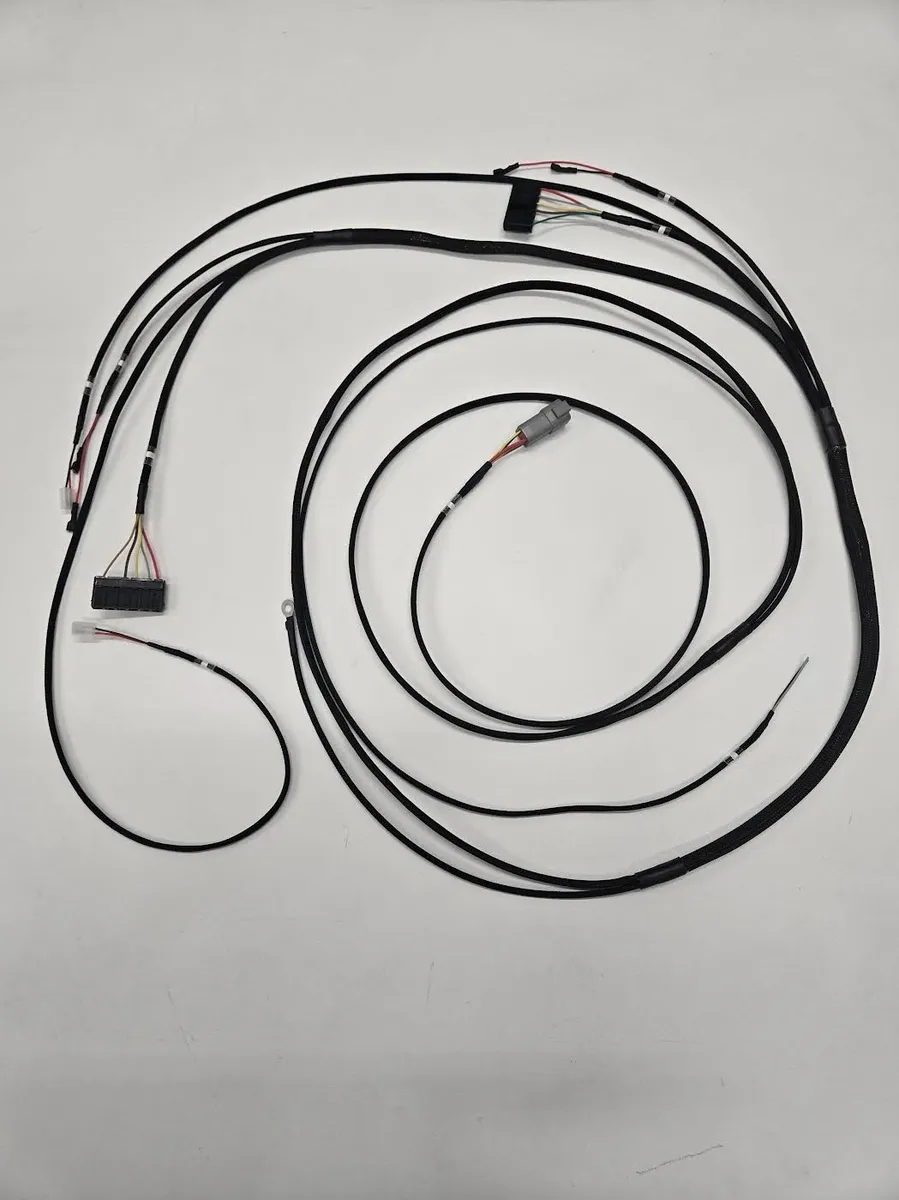

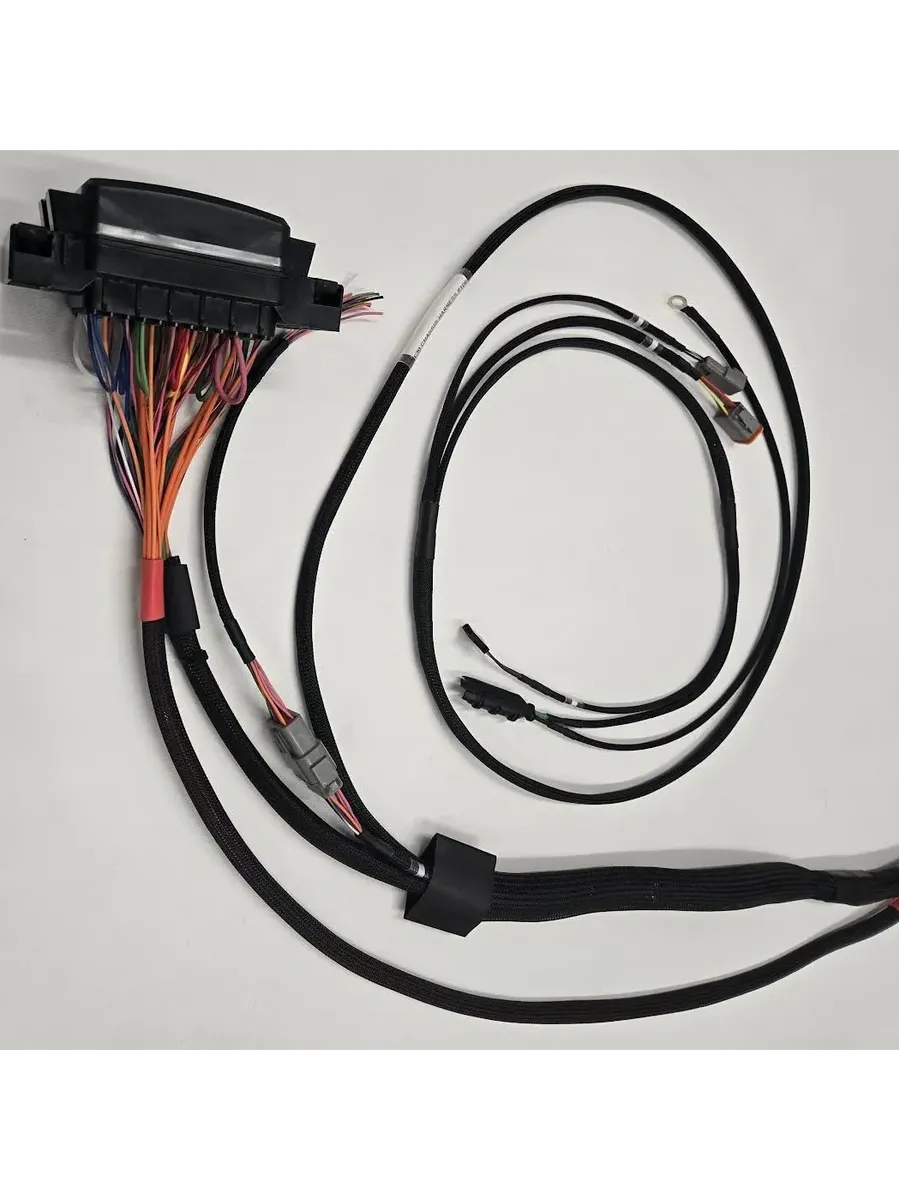

Brand new connectors, Terminals, and TXL wire. Each Chassis Harness is built in three easy to install sections. Front, the main, and the rear. This is not a full replacement body harness. We offer a essential function Chassis Harness.

When you remove your old factory harness, do not throw it away, JUST YET!!

This is a essential function Chassis Harness. This product is NOT a full OEM replacement. We power up the important functions, listed below.

Plug and play options !

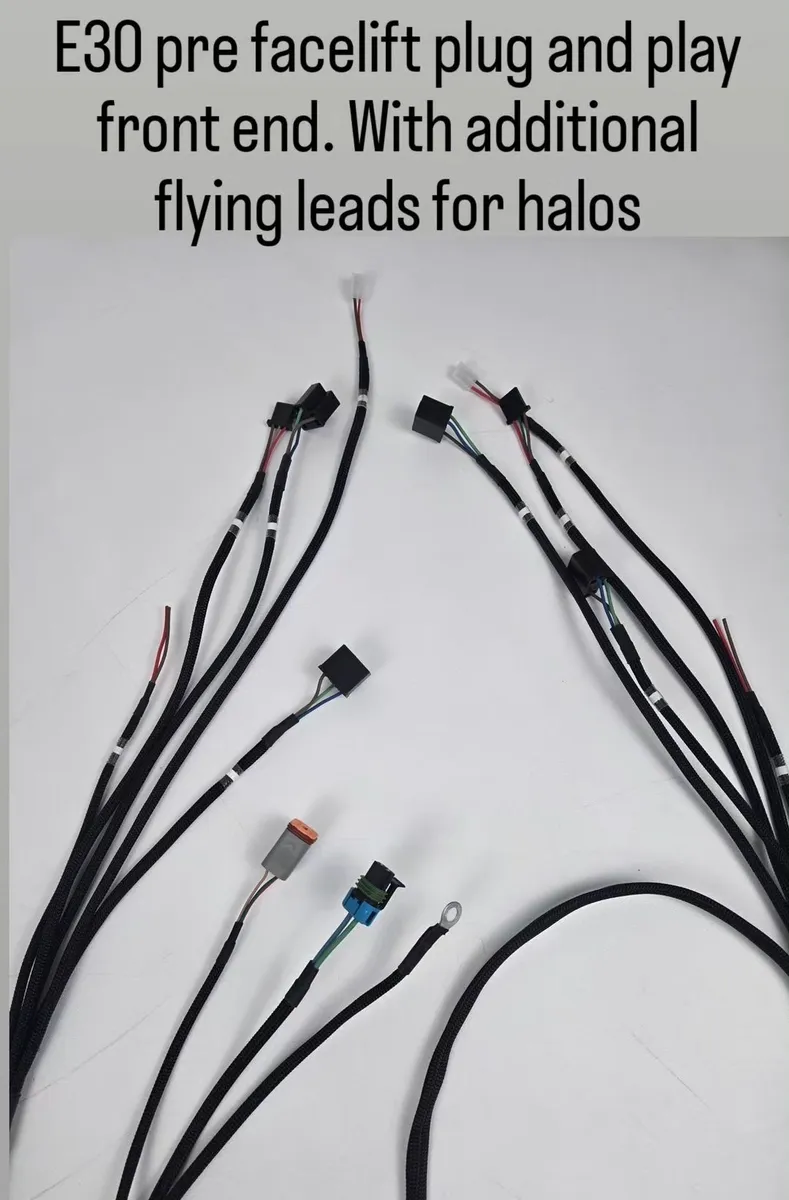

– All style front ends. Pre face lift, facelift, M3, and Euro
– Head lights
– High beams
– Front bumper front lights
– Front bumper side lights
– Brake pedal
– Headlight switch (facelift only) You can use a facelift headlight switch, in a pre-facelift vehicle
– Fuel pump pre-facelift & facelift
– Speed signal
– Tail lights pre-facelift & facelift
– Rear side bumper panel lights
– License plate lights

ALL PLUG AND PLAY!!!!! With additional inputs, and outputs located in the passenger side kick area for – battery constant, ignition on, running lights, and reverse. With additional options available.

For a additional fee, we can can also wire
– 2 or 4 electric windows
– An extra relay. Add a relay. Is an extra rocker switch, or ignition on powering a 12g 30 amp circuit flying lead. Only supplying power. You supply the ground. (NOT TO BE USED FOR FANS)
– Trigger switch . A trigger switch is a 20g switch ground, or power signal. (No relay) Left as a flying lead, in the inputs, and outputs disconnect.

X20 connector VS flying leads option. The X20 connector option is available for OBD1, and OBD2 vehicles. Flying leads included a 12g flying lead for the starter (You pin your specific start terminal on) 20g battery power, 20g key on signal (not to be used to provide power to the engine harness itself, only to indicate that the vehicle is now key on) 20g fuel signal, picking up the ecu out – either switch ground or switch power.

The body side C101 connector, and early 1984-1988.5 body side engine connectors are NLA. We are unable to wire these in.

Digital dash includes to following 20g flying leads – battery power, key on, running lights on, Left blinker, right blinker, fuel level, speed, shared sensor ground for fuel, & speed, Headlights on, high beams on, ground. If you should require anything else, Indicate that to us on your questionnaire.

We do not wire the engine harnesses, A.C, Wiper, fans, radio, speakers, sunroof, heater, defrost, cruise control, or power locks. This is a essential function Chassis Harness.

We can how ever leave a 12g flying lead(s). Receiving power from either ignition on, or a switch (depending on your build requirements) To activate extra circuits. For example, you could use it to power up a radio, wiper or CB, radar, underglow, ect. We only supply the power. (NOT FOR FANS. Will void warranty)

Out of Country sales. Send us a email.

For Tefzel wire with Reychem loom options. Contact us for specific pricing.

Ignore – BMW M3 3 series E chassis 318 320 325 Euro E30 wiring wiring harness body wiring body harness

The turn around time is about 3 – 6 weeks. From the time your payment clears, until we begin building. Subject to change with out notice.

A refund can be issued, up until we begin building your custom E30 Chassis Harness. A E30 Chassis Harness refund, is subject to a 15% processing fee. Of the retail value.

Email us as Sales@chassisharness.com if you have any questions. Or if you would like us to send you our E30 Chassis Harness Questionnaire.
